Overview

The Edge Transportation Exchange (ETX) Application Configuration APIs allow you to create geofence-based message configurations that automatically send V2X messages to road users when specific conditions are met. These APIs enable you to:

Define geographic zones using GeoJSON format
Set trigger conditions (enter, leave, inside, crossing)
Configure V2X messages (RSA alerts, TIM information, DENM notifications, or custom messages)
Apply speed and direction filters
Choose between targeted or broadcast distribution
Manage multiple configurations per vendor

The configurations are distributed to Multi-Access Edge Computing (MEC) nodes where geofence violations are evaluated in real-time with low latency, ensuring rapid response to safety-critical events.

Getting Started

Authentication

All Application Configuration APIs require two authentication tokens from ThingSpace:

Access/Bearer Token: Used for authorization
Session/M2M Token: Used for authentication
VendorID Header: Identifies your organization

For detailed instructions on obtaining these tokens:

Example Request Headers:

Authorization: Bearer M2E3NTlkY2YtNTc4YS00MTcMDItYTNiMTE5ZTgwN2M4
SessionToken: 290386b7-dad7-8447-c50c-31648cc233ea
VendorID: VerizonETX

API Endpoints

Method	Endpoint	Description
POST	`/api/v1/application/configurations/geofence`	Create a new configuration
GET	`/api/v1/application/configurations/geofence/ids`	List all configuration IDs for your vendor
GET	`/api/v1/application/configurations/geofence?id={configId}`	Get details of a specific configuration
PUT	`/api/v1/application/configurations/geofence?id={configId}`	Update an existing configuration
DELETE	`/api/v1/application/configurations/geofence?id={configId}`	Delete a configuration

Production: https://imp.thingspace.verizon.com

Understanding Geofence Configurations

What is a Geofence Configuration?

A geofence configuration combines:

Geographic boundaries - Defined using GeoJSON format
Trigger conditions - When to send messages (enter, leave, inside, crossing)
V2X messages - What to send (up to 10 messages per configuration)
Filters - Speed and direction limits (optional)
Distribution rules - How to deliver messages (targeted or broadcast)

Configuration Lifecycle

Create - POST request returns a unique configuration ID (UUID)
Activate - Set isActive: true to deploy to MECs
Update - Modify any aspect using PUT request
Deactivate - Set isActive: false to temporarily disable
Delete - Remove configuration permanently

Important: All coordinates in your geofence must fall within a single MEC's coverage area. Configurations spanning multiple MECs will be rejected.

Geofence Geometry

Supported Geometry Types

The Application Configuration API supports standard GeoJSON geometry types:

Geometry Type	Dimension	Use Case
LineString	1D	Roads, lanes, boundaries that can be crossed
MultiLineString	1D	Multiple separate lines (e.g., multiple lanes)
Polygon	2D	Areas, zones, regions
MultiPolygon	2D	Multiple separate areas (e.g., multiple intersections)

Geometry Requirements

LineString

Minimum: 2 coordinate points
Maximum: 63 coordinate points
Coordinates: [longitude, latitude] in decimal degrees
Range: Longitude [-180, 180], Latitude [-180, 180]

Example:

{
  "type": "FeatureCollection",
  "features": [{
    "type": "Feature",
    "geometry": {
      "type": "LineString",
      "coordinates": [
        [-77.0366, 38.8977],
        [-77.0360, 38.8980],
        [-77.0354, 38.8983]
      ]
    },
    "properties": {}
  }]
}

MultiLineString

Minimum: 2 LineStrings (must have MORE than 1 line)
Maximum: 10 LineStrings
Each LineString follows the same rules as single LineString

Example:

{
  "type": "FeatureCollection",
  "features": [{
    "type": "Feature",
    "geometry": {
      "type": "MultiLineString",
      "coordinates": [
        [[-77.0366, 38.8977], [-77.0360, 38.8980]],
        [[-77.0354, 38.8983], [-77.0348, 38.8986]]
      ]
    },
    "properties": {}
  }]
}

Polygon

Minimum: 4 coordinate points (first and last must be identical to close the ring)
Maximum: 63 coordinate points
Ring Order: Counter-clockwise (required)
Holes: Not currently supported (single ring only)

Critical Requirements:

First and last points MUST be identical
Ring MUST be in counter-clockwise order
System validates ring closure and winding order

Example:

{
  "type": "FeatureCollection",
  "features": [{
    "type": "Feature",
    "geometry": {
      "type": "Polygon",
      "coordinates": [[
        [-77.0366, 38.8977],
        [-77.0360, 38.8980],
        [-77.0354, 38.8983],
        [-77.0366, 38.8977]
      ]]
    },
    "properties": {}
  }]
}

MultiPolygon

Minimum: 2 Polygons (must have MORE than 1 polygon)
Maximum: 10 Polygons
Each Polygon follows the same rules as single Polygon

Example:

{
  "type": "FeatureCollection",
  "features": [{
    "type": "Feature",
    "geometry": {
      "type": "MultiPolygon",
      "coordinates": [
        [[[-77.0366, 38.8977], [-77.0360, 38.8980], [-77.0354, 38.8983], [-77.0366, 38.8977]]],
        [[[-77.0400, 38.9000], [-77.0394, 38.9003], [-77.0388, 38.9006], [-77.0400, 38.9000]]]
      ]
    },
    "properties": {}
  }]
}

Area Size Limits

The system limits the geographic area covered by your geofence to ensure efficient processing:

Maximum Coverage: 288 geohashes at precision level 7
Calculation Method: System converts your geometry to geohashes and counts coverage
Error: If area is too large, you'll receive AreaSizeError

Tip: Use multiple smaller configurations instead of one large configuration if you exceed area limits.

Trigger Conditions

Trigger Types

Trigger conditions determine when messages are sent to road users:

Trigger	Description	Valid For
enter	Message sent when road user enters the zone	Polygon, MultiPolygon
leave	Message sent when road user exits the zone	Polygon, MultiPolygon
inside	Message sent while road user is within the zone	Polygon, MultiPolygon
crossing	Message sent when road user crosses the line	LineString, MultiLineString

Visual Guide to Trigger Conditions

Polygon Triggers (enter, leave, inside)

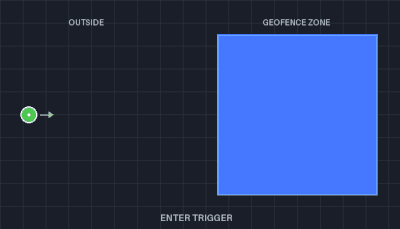

ENTER Trigger - Message sent when vehicle enters the geofence zone:

Vehicle moves from outside into the geofence. Trigger activates at zone boundary.

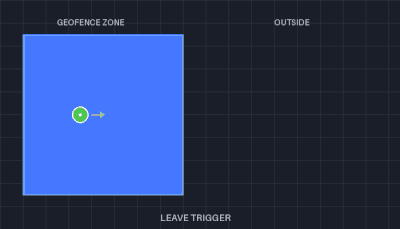

LEAVE Trigger - Message sent when vehicle exits the geofence zone:

Vehicle moves from inside to outside. Trigger activates when crossing boundary.

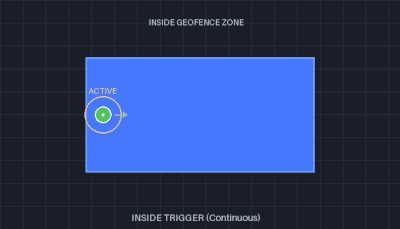

INSIDE Trigger - Message sent continuously while vehicle is within the zone:

Vehicle moves through the geofence. Trigger remains active throughout.

Example Use Cases:

ENTER: School zone warning when vehicle enters
LEAVE: "Thank you for driving safely" when exiting school zone
INSIDE: Continuous speed limit reminder while in work zone

LineString Triggers (crossing)

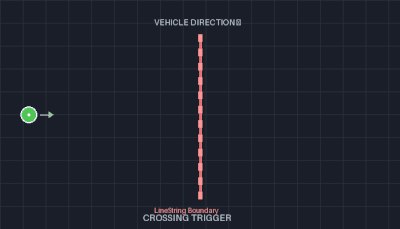

CROSSING Trigger - Message sent when vehicle crosses a LineString boundary:

Vehicle crosses the vertical boundary line. Trigger activates at the crossing point.

Use Cases:

Stop line detection at intersections
Lane boundary violations
Perimeter breach detection
Wrong-way driver alerts

Multi-Geometry Triggers

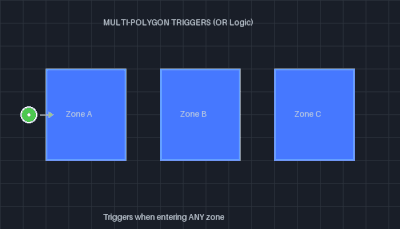

MultiPolygon:

Vehicle entering Zone B demonstrates OR logic - trigger fires when entering ANY zone (A, B, or C).

ENTER: Fires when vehicle enters ANY zone (1, 2, or 3)
LEAVE: Fires when vehicle leaves ANY zone (1, 2, or 3)
INSIDE: Fires when vehicle is inside ANY zone (1, 2, or 3)

Multiple independent zones = OR logic for triggers

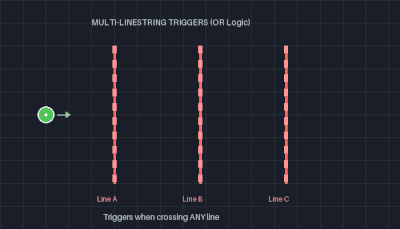

MultiLineString:

Vehicle crossing Line B demonstrates OR logic - trigger fires when crossing ANY line (A, B, or C).

CROSSING: Fires when vehicle crosses ANY line (A, B, or C)

Multiple independent lines = OR logic for crossing

Geometry-Specific Rules

For LineString and MultiLineString:

ONLY crossing trigger is allowed
EXACTLY 1 trigger condition must be specified
Any other trigger conditions will be rejected

For Polygon and MultiPolygon:

ONLY enter, leave, or inside triggers are allowed
NO crossing trigger permitted
Can specify 1 to 3 trigger conditions
Multiple conditions are evaluated with OR logic

Multiple Trigger Conditions

When you specify multiple trigger conditions for a message, they are evaluated with OR logic:

"triggerConditions": ["enter", "inside"]

This message will be sent when the road user either:

Enters the geofence, OR
Is inside the geofence

For MultiLineString/MultiPolygon:

Trigger condition is met if ANY of the geometries satisfy it
Example: For MultiPolygon with 3 polygons, "enter" triggers if user enters ANY of the 3 polygons

Messages

Each geofence configuration contains a messages array with 1-10 message objects. Each message defines:

Who receives it (road user types)
When it triggers (trigger conditions, limits)
How it's delivered (distribution type and schedule)
What content it contains (message type: generic, SAE, or ETSI)

The messages field follows the OpenAPI schema structure where each message inherits from MessageBase and includes one specific message type.

Message Fields

Every message in the messages array must include these fields:

`isPrivate` (boolean, required)

Defines whether the message is private or public.

true: Published under your Vendor ID, visible only to selected vendors
false: Published under Public vendor ID, visible to all users
Example: "isPrivate": false

`roadUserType` (array, required)

Filters which types of road users receive the message.

Valid values: "Vehicle", "VulnerableRoadUser"
- "Vehicle": Vehicles with a metal box (Car, Truck, Bus, etc.)
- "VulnerableRoadUser": Road users without protective housing (Pedestrian, Cyclist, Motorcyclist, etc.)
Minimum: 1 item, Maximum: 2 items
Example: "roadUserType": ["Vehicle", "VulnerableRoadUser"]

`triggerConditions` (array, required)

Defines when the message is triggered relative to the geofence.

Valid values: "enter", "leave", "inside", "crossing"
At least one trigger condition must be specified
Example: "triggerConditions": ["enter", "inside"]
See Trigger Conditions section for detailed explanation

`limits` (object, optional)

Speed and heading constraints for message triggering.

The limits object contains speed and/or heading constraints:

speed: Defines acceptable speed range. Messages trigger when road user speed is OUTSIDE this range (either too slow OR too fast). Contains min and max values in m/s (0-160).
heading: Filters messages by direction of travel. Messages trigger only when road user heading falls within this range. Contains min and max values in degrees (0-360).

Example:

"limits": [{
  "speed": {"min": 10, "max": 20},
  "heading": {"min": 45, "max": 135}
}]

See Speed Limits and Heading/Direction Limits sections for detailed examples.

`distributionType` (array, optional)

How the message is distributed to recipients.

Valid values: "Targeted", "Broadcast"
Defaults to ["Targeted"] if not specified
Example: "distributionType": ["Targeted"]
See Distribution Types section for details

`distributionSchedule` (object, optional)

Controls message repetition and timing.

repeatPeriod: Seconds between message publications (minimum 5 seconds)
duration: Total duration in minutes
startTime: ISO 8601 UTC timestamp for scheduled start (must end with Z)
Example:

"distributionSchedule": {
  "repeatPeriod": 30,
  "duration": 3600,
  "startTime": "2024-06-15T12:00:00Z"
}

Note: Requirements for distributionSchedule vary by distribution type. See Validation Rules for details on when this field is required vs. optional.

Message Types

In addition to the common message fields above, each message must include exactly one of the following message type objects:

generic: Custom V2X messages (TAM, EVA, vendor-specific)
saeAlert: SAE J2735 Road Side Alert (RSA)
saeInfo: SAE J2735 Traveler Information Message (TIM)
etsiAlert: ETSI Decentralized Environmental Notification Message (DENM)

Generic Custom Messages

Generic messages allow you to send any custom V2X message format, including standard messages not natively supported by the API (TAM, EVA, etc.) or vendor-specific custom messages.

Required Fields:

messageType: String identifying the message type (e.g., "BSM", "PSM", "TAM", "EVA", "VendorCustom")
messageFormat: Encoding format (e.g., "j2735", "j2735_gr", "protobuf", "json")
payload: Base64-encoded message content

Important: ETX prefers j2735 or j2735_gr encoding for standard V2X messages. Only vendor-specific message types should use alternative formats like JSON.

Custom Message Examples

Example 1: Simple JSON Custom Message

Use Case: Send a custom vendor-specific warning in JSON format.

Original JSON Message:

{
  "warning": "Construction ahead",
  "severity": "high",
  "distance": 500,
  "speed_limit": 45
}

Step-by-Step Encoding:

# Step 1: Create your JSON message
echo '{"warning":"Construction ahead","severity":"high","distance":500,"speed_limit":45}' > message.json

# Step 2: Encode to base64
base64 message.json
# Result: eyJ3YXJuaW5nIjoiQ29uc3RydWN0aW9uIGFoZWFkIiwic2V2ZXJpdHkiOiJoaWdoIiwiZGlzdGFuY2UiOjUwMCwic3BlZWRfbGltaXQiOjQ1fQo=

Configuration:

{
  "isPrivate": true,
  "roadUserType": ["Vehicle"],
  "triggerConditions": ["enter"],
  "distributionType": ["Targeted"],
  "generic": {
    "messageType": "VendorWarning",
    "messageFormat": "json",
    "payload": "eyJ3YXJuaW5nIjoiQ29uc3RydWN0aW9uIGFoZWFkIiwic2V2ZXJpdHkiOiJoaWdoIiwiZGlzdGFuY2UiOjUwMCwic3BlZWRfbGltaXQiOjQ1fQo="
  }
}

Client-Side Decoding:

// Receive message via MQTT
const base64Payload = message.payload;

// Decode base64 to string
const jsonString = atob(base64Payload);

// Parse JSON
const customMessage = JSON.parse(jsonString);
console.log(customMessage.warning); // "Construction ahead"
console.log(customMessage.severity); // "high"

Example 2: TAM (TollAdvertisementMessage)

Use Case: Broadcast toll pricing and collection point information to vehicles approaching tolled road segments or express lanes.

TAM Message Structure (SAE J3217):

TollAdvertisementMessage ::= SEQUENCE {
    tollChargesTable TollChargesTable,
    tollAdvInfo      TollAdvertisementInfo OPTIONAL,
    ...
}

TollAdvertisementInfo ::= SEQUENCE {
    tamSequenceNum      MsgCount,
    totalTams          INTEGER (1..10, ...),
    tamNum             INTEGER (1..10, ...),
    tollChargerInfo    TollChargerInfo,
    timestamp          DDateTime,
    tumInstructions    TumInstructions OPTIONAL,
    tollPointMap       TollPointMap,
    tumPublicKey       OCTET STRING (SIZE(32)),
    ackPolicy          AckPolicy,
    lastTollPtDataReq  BOOLEAN OPTIONAL,
    ...
}

Important: The message structure shown above is provided as an example for illustration purposes. Always refer to the most current version of the SAE J3217 standard when creating, encoding, and decoding TollAdvertisementMessage. Message definitions, field requirements, and data types may change with standard updates.

Step-by-Step Process:

Create TAM message using ASN.1 encoder:

# Using asn1tools or similar library
import asn1tools
import base64

# Load SAE J3217 schema
j3217 = asn1tools.compile_files(['SAE-J3217.asn'])

# Create TAM message (SAE J3217)
tam_message = {
    'tollChargesTable': {
        'tollCharges': [
            {
                'tollPointId': 1001,
                'tollLaneSet': [1, 2, 3],  # Lane IDs subject to toll
                'paymentFee': {
                    'amount': 250,          # $2.50 in cents
                    'currency': 840         # ISO 4217 code for USD
                },
                'vehicleClass': 1           # Passenger vehicle
            },
            {
                'tollPointId': 1001,
                'tollLaneSet': [1, 2, 3],
                'paymentFee': {
                    'amount': 750,          # $7.50 in cents
                    'currency': 840
                },
                'vehicleClass': 2           # Commercial vehicle
            }
        ]
    },
    'tollAdvInfo': {
        'tamSequenceNum': 1,
        'totalTams': 1,
        'tamNum': 1,
        'tollChargerInfo': {
            'tollChargerId': 5001,
            'tollPointId': 1001
        },
        'timestamp': {
            'year': 2024,
            'month': 3,
            'day': 15,
            'hour': 14,
            'minute': 30
        },
        'tollPointMap': {
            'tollPoints': [
                {
                    'tollPointId': 1001,
                    'position': {
                        'lat': 385447190,   # Latitude * 10^7
                        'lon': -771407890   # Longitude * 10^7
                    }
                }
            ]
        },
        'tumPublicKey': b'\x04' + b'\x00' * 31,  # 32-byte public key
        'ackPolicy': 0  # No acknowledgment required
    }
}

# Encode to UPER (Unaligned Packed Encoding Rules)
tam_bytes = j3217.encode('TollAdvertisementMessage', tam_message, 'uper')

# Encode to base64 for API
tam_base64 = base64.b64encode(tam_bytes).decode('utf-8')
print(tam_base64)
# Result: AQEyNFZ4AAHgQA...

Configuration:

{
  "isPrivate": false,
  "roadUserType": ["Vehicle"],
  "triggerConditions": ["inside"],
  "distributionType": ["Broadcast"],
  "distributionSchedule": {
    "repeatPeriod": 60,
    "duration": 480
  },
  "generic": {
    "messageType": "TAM",
    "messageFormat": "j3217",
    "payload": "AQEyNFZ4AAHgQAIAAAEBZAAAAAEyAAAA..."
  }
}

Why Use Generic for TAM:

TAM is not natively supported as a field in the API (only RSA, TIM, DENM)
Must be sent as generic message with proper encoding
Message type "TAM" allows receivers to identify and parse correctly

Example 3: EVA (Emergency Vehicle Alert)

Use Case: Alert road users when emergency vehicle is approaching the geofence area.

EVA Message Structure (SAE J2735):

EmergencyVehicleAlert ::= SEQUENCE {
    timeStamp    MinuteOfTheYear OPTIONAL,
    id           TemporaryID,
    rsaMsg       RoadSideAlert,
    responseType ResponseType OPTIONAL,
    details      EmergencyDetails,
    ...
}

Important: The message structure shown above is provided as an example for illustration purposes. Always refer to the most current version of the SAE J2735 standard when creating, encoding, and decoding EmergencyVehicleAlert. Message definitions, field requirements, and data types may change with standard updates.

Step-by-Step Process:

Create EVA message:

import asn1tools
import base64

j2735 = asn1tools.compile_files(['SAE-J2735.asn'])

# Create EVA message
eva_message = {
    'timeStamp': 234567,
    'id': b'\xAB\xCD\xEF\x01',
    'rsaMsg': {
        'msgCnt': 5,
        'typeEvent': 9729,  # Emergency vehicle
        'description': [9730, 9731]
    },
    'responseType': 1,  # Emergency
    'details': {
        'eventType': 3,  # Fire truck
        'responseType': 1,  # Code 3 (lights and sirens)
        'sirenUse': 1,  # Siren active
        'lightsUse': 1  # Lights active
    }
}

# Encode to UPER
eva_bytes = j2735.encode('EmergencyVehicleAlert', eva_message, 'uper')

# Encode to base64
eva_base64 = base64.b64encode(eva_bytes).decode('utf-8')

Configuration:

{
  "isPrivate": false,
  "roadUserType": ["Vehicle", "VulnerableRoadUser"],
  "triggerConditions": ["inside"],
  "distributionType": ["Broadcast"],
  "distributionSchedule": {
    "repeatPeriod": 5,
    "duration": 60
  },
  "generic": {
    "messageType": "EVA",
    "messageFormat": "j2735",
    "payload": "AwOrzwEABSYBJgImAwEBCgEBAQ=="
  }
}

Why Use Generic for EVA:

EVA is part of SAE J2735 but not natively supported as API field
Requires UPER encoding of the complete message structure
Broadcast distribution ensures all nearby vehicles receive alert

Example 4: J2735_gr (GeoRouted) Custom Message

Use Case: Send vendor-specific message wrapped in GeoRoutedMsg protocol buffer.

GeoRoutedMsg Structure:

message GeoRoutedMsg {
    bytes msgBytes = 1;                      // Your actual message
    google.protobuf.Timestamp time = 2;      // Timestamp
    optional Position position = 3;          // GPS position
}

message Position {
    double latitude = 1;
    double longitude = 2;
}

Create your custom message:

import base64
from google.protobuf.timestamp_pb2 import Timestamp
from datetime import datetime

# Your custom message (already encoded as bytes)
custom_msg_bytes = b'\x01\x02\x03\x04...'  # Your message content

# Create GeoRoutedMsg
geo_msg = GeoRoutedMsg()
geo_msg.msgBytes = custom_msg_bytes
geo_msg.time.GetCurrentTime()
geo_msg.position.latitude = 38.8977
geo_msg.position.longitude = -77.0366

# Serialize to bytes
geo_bytes = geo_msg.SerializeToString()

# Encode to base64
geo_base64 = base64.b64encode(geo_bytes).decode('utf-8')

Configuration:

{
  "isPrivate": true,
  "roadUserType": ["Vehicle"],
  "triggerConditions": ["enter"],
  "distributionType": ["Targeted"],
  "generic": {
    "messageType": "CustomVendorMessage",
    "messageFormat": "j2735_gr",
    "payload": "CgQBAgMEEg4I4/fA..."
  }
}

When to Use j2735_gr:

Message needs geographic routing information
Want to include precise timestamp and position
Using GeoRelevance MQTT topics (requires GeoRoutedMsg wrapper)

Custom Message Payload Encoding Reference

Encoding Process Summary:

Step 1: Client - Create Message
├─ JSON: Write JSON object
└─ Custom: Encode based on message format

Step 2: Client - Encode to Base64
├─ Input: Raw bytes from Step 1
├─ Process: base64.b64encode()
└─ Output: Base64 string

Step 3: Client - Submit Configuration to API
├─ Set messageType (identifies message, e.g., "CustomMsg", "RSA")
├─ Set messageFormat (encoding type, e.g., "j2735", "protobuf")
└─ Set payload (base64 string)

Step 4: Server - Process Configuration
├─ Base64 decode payload to raw bytes
├─ Publish raw bytes to MQTT broker (no wrapping for generic messages)
└─ Note: SAE/ETSI standard messages are wrapped in GeoRoutedMsg protobuf

Step 5: Client - Receive and Process
├─ Subscribe to MQTT topic
├─ Receive raw bytes
├─ Parse based on messageFormat
└─ Process message content

Common Tools for Encoding:

# Command line base64
echo -n "your message" | base64

# Python
import base64
base64.b64encode(b"your message").decode('utf-8')

# JavaScript/Node.js
Buffer.from("your message").toString('base64')

# Java
Base64.getEncoder().encodeToString("your message".getBytes())

Message Format Guidelines:

Format	Use Case	Encoding	Preferred For
`j2735`	SAE standard messages	ASN.1 UPER (pre-encoded)	EVA, standard V2X
`j3217`	C-V2X toll messages	ASN.1 UPER (pre-encoded)	TAM (Toll Advertisement)
`j2735_gr`	Pre-encoded geo-routed messages	ASN.1 UPER (pre-encoded)	Pre-encoded UPER messages
`json`	Vendor custom data	JSON + Base64	Simple custom alerts
`protobuf`	Structured custom messages	Protocol Buffers	High-performance custom

Note: For generic custom messages, all formats refer to pre-encoded payloads. The j2735_gr suffix indicates the message format, not that ETX will add GeoRoutedMsg wrapping (generic messages are published as-is).

Message Publishing Behavior:

Message Type	Payload Processing	GeoRoutedMsg Wrapper	Position Data	Use Case
Generic (custom)	Published as raw bytes (as-is)	❌ NO	❌ NO	Pre-encoded vendor messages
SAE (RSA/TIM)	JSON → UPER encoding	✅ YES	✅ YES	Standard SAE messages
ETSI (DENM)	JSON → UPER encoding	✅ YES	✅ YES	Standard ETSI messages

Critical Distinction: Generic custom messages are published as raw bytes without any wrapper. If your use case requires position data or GeoRoutedMsg wrapping, you must include it in your pre-encoded payload, or use the standard SAE/ETSI message types which are automatically wrapped.

Important Notes:

Always validate your encoded message can be decoded before deployment
Test with actual V2X receivers to ensure compatibility
ETX system does NOT validate message content (only base64 format)
Clients are responsible for parsing and validating message semantics
Use Public vendorId for interoperable messages, Direct vendorId for proprietary formats
Base64 decoding happens server-side - clients receive already-decoded raw bytes via MQTT
Generic messages are published exactly as provided (no encoding, no wrapping, no position)

SAE Road Side Alert (RSA)

RSA messages send alerts for nearby hazards to travelers, as defined in SAE J2735 standard.

Required Fields:

typeEvent: ITIS code describing the alert/danger/hazard (integer 0-65535)
description: Optional array of additional ITIS codes (up to 8 items)
msgCnt: Optional message counter (0-127, auto-populated if omitted)

Example:

{
  "isPrivate": false,
  "roadUserType": ["Vehicle", "VulnerableRoadUser"],
  "triggerConditions": ["enter"],
  "distributionType": ["Targeted"],
  "saeAlert": {
    "msgCnt": 0,
    "typeEvent": 521,
    "description": [522, 523]
  }
}

ITIS Codes: Complete set available in Volume Two of SAE J2540 standard.

Common ITIS Event Codes:

521: Accident
522: Multi-vehicle accident
771: Road construction
1025: Severe weather

Important: Always refer to the most current versions of the SAE J2735 and SAE J2540 standards when implementing RSA messages. ITIS codes, message field requirements, and encoding specifications may change with standard updates. Verify your implementation against the latest published standards.

Message Standard: Must use "messageStandard": "sae" in configuration.

SAE Traveler Information Message (TIM)

TIM messages send advisory and road sign information to equipped devices.

Required Fields for saeInfo:

dataFrames (array, required) - Array of data frames (1-8 items). Each data frame contains:

frameType: Type of frame - "unknown", "advisory", "roadSignage", or "commercialSignage"
msgId: Message identifier object containing either:
- furtherInfoID: 4-character hexadecimal string (for advisory frame types)
- roadSignID: Object with position (lat/long) and viewAngle (for roadSignage frame types)
startTime: Elapsed minutes of current year (0-527040)
durationTime: Duration in minutes (0-32000, where 32000 = forever)
priority: Importance level (0-7, where 7 is most important)
regions: Array of geographic paths (1-16 items). Auto-populated from geofence if not specified
content: Content object, must be one of:
- advisory: Array of ITIS codes and text items
- workZone: Array of work zone signs and directions
- genericSign: Array of MUTCD signs and directions
- speedLimit: Array of speed limits and cautions
- exitService: Array of roadside available services

Optional Fields for saeInfo:

msgCnt: Message counter (0-127, auto-populated if omitted)
timeStamp: Elapsed minutes of current year (0-527040)
packetID: Unique packet identifier (18-character hex string)
urlB: Base URL for additional information (max 45 characters)

Optional Fields for DataFrame:

startYear: Year according to Gregorian calendar (0-4095, where 0 = unknown)
contentNew: Extended content for future entities (e.g., friction information)

Example:

{
  "isPrivate": false,
  "roadUserType": ["Vehicle"],
  "triggerConditions": ["inside"],
  "distributionType": ["Broadcast"],
  "distributionSchedule": {
    "repeatPeriod": 30,
    "duration": 60,
    "startTime": "2024-06-15T12:00:00Z"
  },
  "saeInfo": {
    "msgCnt": 5,
    "timeStamp": 100000,
    "packetID": "B343B343B343B343A5",
    "urlB": "http://example.com",
    "dataFrames": [{
      "frameType": "advisory",
      "msgId": {
        "furtherInfoID": "1101"
      },
      "startYear": 2024,
      "startTime": 100000,
      "durationTime": 120,
      "priority": 5,
      "regions": [{
        "description": {
          "path": {
            "offset": {
              "ll": {
                "nodes": [
                  {
                    "delta": {
                      "node-LatLon": {
                        "lon": -771496500,
                        "lat": 389568100
                      }
                    }
                  },
                  {
                    "delta": {
                      "node-LatLon": {
                        "lon": -771495000,
                        "lat": 389569000
                      }
                    }
                  }
                ]
              }
            }
          }
        }
      }],
      "content": {
        "advisory": [
          {"item": {"itis": 8960}},
          {"item": {"text": "Road Work Ahead"}}
        ]
      }
    }]
  }
}

Message Standard: Must use "messageStandard": "sae" in configuration.

Note on Regions: The regions field in each DataFrame is required and defines the geographic area where the message applies. While you can explicitly specify regions using SAE J2735 GeographicalPath format (as shown in the example above with lat/lon node arrays), the system can automatically populate this field from your geofence geometry if you omit it, converting it to the proper format.

Important Limitation: When the system auto-populates regions from your geofence, it only supports LineString and Polygon geometries. Circle regions are not supported in the automatic conversion process because the API currently only supports line strings and polygons. If you need to define circular regions, you must explicitly add them to the regions field in your payload using the SAE J2735 GeographicalPath format with appropriate node coordinates.

Important: Always refer to the most current version of the SAE J2735 standard when implementing TIM messages. Message field requirements, DataFrame structures, content types, and encoding specifications may change with standard updates. Verify your implementation against the latest published standards.

ETSI Decentralized Environmental Notification Message (DENM)

DENM messages alert road users of detected events using ITS communication technologies, as defined in ETSI standards.

Required Fields:

header (object, required)

protocolVersion: Must be 2
messageId: Must be 1 (for DENM)
stationId: Station identifier (uint32)

denm (object, required)

management: Management container with event metadata
management.actionId: Originating station ID and sequence number
management.detectionTime: Timestamp in milliseconds since start of 2004
management.referenceTime: Timestamp in milliseconds since start of 2004
management.eventPosition: Latitude, longitude, altitude, confidence ellipse
management.stationType: Type of ITS station (0-255)
situation: Optional situation container
situation.informationQuality: Quality level (0-7)
situation.eventType: Cause and sub-cause codes

Example:

{
  "isPrivate": false,
  "roadUserType": ["Vehicle"],
  "triggerConditions": ["enter"],
  "distributionType": ["Targeted"],
  "etsiAlert": {
    "header": {
      "protocolVersion": 2,
      "messageId": 1,
      "stationId": 12345
    },
    "denm": {
      "management": {
        "actionId": {
          "originatingStationId": 12345,
          "sequenceNumber": 1
        },
        "detectionTime": 123456789,
        "referenceTime": 123456789,
        "eventPosition": {
          "latitude": 388977000,
          "longitude": -770366000,
          "positionConfidenceEllipse": {
            "semiMajorConfidence": 100,
            "semiMinorConfidence": 50,
            "semiMajorOrientation": 0
          },
          "altitude": {
            "altitudeValue": 10000,
            "altitudeConfidence": "alt-010-00"
          }
        },
        "stationType": 15
      },
      "situation": {
        "informationQuality": 5,
        "eventType": {
          "ccAndScc": {
            "trafficCondition1": 5
          }
        }
      }
    }
  }
}

Message Standard: Must use "messageStandard": "etsi" in configuration.

Station Types (stationType):

0: unknown
1: pedestrian
5: passengerCar
6: bus
15: roadSideUnit

Cause Codes (eventType):

Traffic Condition (1): trafficCondition1 with sub-cause 0-255
Accident (2): accident2 with sub-cause 0-255
Roadworks (3): roadworks3 with sub-cause 0-255
Impassability (5): impassability5 with sub-cause 0-255
Wrong Way Driving (14): wrongWayDriving14 with sub-cause 0-255
Emergency Vehicle Approaching (95): emergencyVehicleApproaching95 with sub-cause 0-255

Important: Always refer to the most current ETSI standards (ETSI EN 302 637-3) when implementing DENM messages. Message field requirements, station types, cause codes, and encoding specifications may change with standard updates. Verify your implementation against the latest published ETSI standards.

Message Standards

When creating a configuration, specify the V2X message standard:

{
  "messageStandard": "sae"
}

Options:

"sae" - SAE J2735 (North American) standard (default)
"etsi" - ETSI (European) standard

Validation Rules:

If using saeAlert or saeInfo, must specify "messageStandard": "sae" (or omit for default)
If using etsiAlert, must specify "messageStandard": "etsi"
Generic messages can use either standard

Advanced Configuration Options

Speed Limits

Speed limits define an acceptable speed range for road users. Messages are triggered when the road user's speed falls outside this range (either too slow OR too fast) AND the trigger conditions are met.

Fields:

min: Minimum required speed in m/s (0-160)
max: Maximum acceptable speed in m/s (0-160)
Constraint: max >= min

Example:

{
  "limits": [{
    "speed": {
      "min": 10,
      "max": 20
    }
  }]
}

Behavior: Message sends if road user speed is:

Below 10 m/s (too slow), OR
Above 20 m/s (too fast)

Use Cases:

School zone warnings for speeding vehicles
Work zone alerts for vehicles exceeding speed limits
Slow-moving vehicle warnings in high-speed areas

Speed Conversion:

1 m/s = 3.6 km/h = 2.237 mph
25 mph ≈ 11.18 m/s
55 mph ≈ 24.59 m/s
100 km/h ≈ 27.78 m/s

Heading/Direction Limits

Heading limits filter messages based on the road user's direction of travel (0-360 degrees).

Fields:

min: Minimum heading in degrees (0-360)
max: Maximum heading in degrees (0-360)

Example:

{
  "limits": [{
    "heading": {
      "min": 45,
      "max": 135
    }
  }]
}

Behavior: Message sends if road user heading is between 45° and 135° (generally eastbound).

Special Case - Wrap Around: If min > max, the system handles wrap-around for directions near north:

{
  "heading": {
    "min": 350,
    "max": 10
  }
}

This captures headings from 350° to 360° (clockwise) and 0° to 10° (continuing clockwise), representing ±10° around north.

Heading Reference:

0° = North
90° = East
180° = South
270° = West

Use Cases:

Wrong-way driver alerts (heading opposite to expected direction)
Lane-specific warnings (e.g., only for northbound traffic)
Directional construction zone alerts

Road User Types

Specify which types of road users should receive the message:

Options:

"Vehicle" - Vehicles with protective housing (cars, trucks, buses)
"VulnerableRoadUser" - Road users without protective housing (pedestrians, cyclists, motorcyclists)

Rules:

Must specify 1 or 2 types
Cannot specify the same type twice

Examples:

{
  "roadUserType": ["Vehicle"]
}

{
  "roadUserType": ["Vehicle", "VulnerableRoadUser"]
}

Use Cases:

Pedestrian crossing warnings for vehicles only
Bike lane alerts for vulnerable road users only
General hazard warnings for all road users

Distribution Types

Distribution types control how and where messages are delivered to road users through MQTT topics. Understanding the difference between Targeted and Broadcast distribution is critical for proper system integration.

Understanding Distribution Types:

Key Concept: The distribution type determines which MQTT topic namespace is used:

Targeted → Messages sent to Direct MQTT topics
Broadcast → Messages sent to Regional MQTT topics

Targeted Distribution

Targeted distribution sends messages directly to specific road users who trigger the geofence conditions. The system evaluates geofence violations in real-time and generates personalized messages for affected road users.

How It Works:

Road user enters/exits/crosses geofence or meets trigger conditions
System evaluates speed/heading limits if defined
Message is generated and sent to that specific user's Direct MQTT topic
Only the triggered road user receives the message

MQTT Topic Structure:

vzimp/1/Direct/{clientType}/{clientSubtype}/{vendorId}/{messageFormat}/{messageType}/{sessionID}

Example Subscription for Targeted Messages:

# Subscribe to all RSA messages for your vehicle
vzimp/1/Direct/Vehicle/PassengerCar/YourVendorID|Public/j2735_gr/RSA/+

# Subscribe to all TIM messages for your vendor
vzimp/1/Direct/+/+/YourVendorID/j2735_gr/TIM/+

# Subscribe to all TIM messages Public vendor
vzimp/1/Direct/+/+/Public/j2735_gr/TIM/+

# Subscribe to all targeted messages (any type)
vzimp/1/Direct/+/+/+/+/+/+

Characteristics:

Delivery: Unicast (one-to-one) to specific session
Latency: Real-time, immediate upon trigger
Overhead: Low message volume
Schedule: Uses repeatPeriod only (default 5 seconds)
Duration/StartTime: Ignored for targeted messages
Use for: Real-time personalized warnings

Configuration Example:

{
  "distributionType": ["Targeted"]
}

When to Use Targeted Distribution:

✅ Speed limit violations (message only for speeding vehicles)
✅ Enter/leave zone notifications (personalized alerts)
✅ Wrong-way driver warnings (only for violating vehicle)
✅ Personalized safety alerts
✅ Client-specific instructions
✅ Low latency requirements
✅ Minimize message overhead

Important Notes:

Client must be connected to MQTT to receive targeted messages
Messages are not persisted (if client disconnects, messages are lost)
Requires active position reporting from road users
Default repeat period: 5 seconds
Best for dynamic, event-driven alerts

Broadcast Distribution

Broadcast distribution sends messages to geographic regions defined by 7-digit geohashes that intersect with your geofence. All road users in those regions can receive the messages.

How It Works:

System calculates all 7-digit geohashes covered by your geofence
Messages are broadcast to Regional MQTT topics for each geohash
Messages are sent according to distribution schedule (repeatPeriod, duration, startTime)
All subscribers to those geohash regions receive the messages

Coverage/Broadcast Area Calculation

When you create a Broadcast configuration, the system calculates which 7-digit geohashes are affected by your geofence. Here's how it works:

Geohash Grid System

A Geohash is a geocoding system that encodes geographic coordinates into a short string of letters and digits. Each character in the geohash represents increased precision, dividing the world into a hierarchical grid.

You can calculate geohashes for specific coordinates using this Geohash Calculator tool by providing latitude, longitude, and desired precision.

Precision	Coverage Area	Use Case
6-digit	~1.2km × 0.6km	Large area
7-digit	~153m × 153m	ETX broadcast level
8-digit	~38m × 19m	Fine-grained

Example: Geofence Coverage Calculation

Your Polygon Geofence:

Step 1: System Calculates Overlapping Geohashes

Step 2: Add Buffer Zone (Neighboring geohashes)

Step 3: Broadcast to Regional Topics

Coverage Area Size

Maximum Coverage Limit:

288 geohashes at precision 7 (approximately 6.5 km²) - a 3×3 grid of 6-digit geohashes
If exceeded, split into multiple configurations

Coverage Estimation:

Small Intersection:  4-6 geohashes
Work Zone:   10-20 geohashes
Highway Zone: 50-100 geohashes
Maximum Allowed: 288 geohashes at 7-digit precision

Performance Considerations

Broadcast Message Volume:

Calculation:

- Geohashes affected: N
- Repeat period: R seconds
- Duration: D minutes
- Total messages: N × (D × 60 / R)

Example:

- 20 geohashes
- 30 second repeat period
- 120 minute duration
- Total: 20 × (120 × 60 / 30) = 20 × 240 = 4,800 messages

Use Targeted if possible to reduce network overhead!

MQTT Topic Structure:

vzimp/1/Regional/{geohash}/{clientType}/{clientSubtype}/{vendorId}/{messageFormat}/{messageType}/{sessionID}

Geohash Format: Slash-delimited 8 characters (e.g., d/j/z/f/u/4/k/g)

Example Subscription for Broadcast Messages:

# Subscribe to RSA messages in specific 7-digit geohash
vzimp/1/Regional/d/j/z/f/u/4/k/+/+/+/Public/j2735_gr/RSA/+

# Subscribe to all messages in 7-digit geohash (all 32 8-digit sub-regions)
vzimp/1/Regional/d/j/z/f/u/4/k/+/+/+/+/+/+/+

# Subscribe to TIM messages in 6-digit geohash area (wider area)
vzimp/1/Regional/d/j/z/f/u/4/+/+/+/+/Public/j2735_gr/TIM/+

# Wide-area subscription (7-digit level only, not sub-geohashes)
vzimp/1/Regional/d/j/z/f/u/4/k/-/+/+/Public/+/+/+

Characteristics:

Delivery: Multicast (one-to-many) to geographic regions
Latency: Scheduled transmission
Overhead: Higher message volume (sent to all geohashes in area)
Schedule: Requires full distributionSchedule (repeatPeriod, duration, startTime optional)
Use for: Area-wide information and persistent warnings
Geohash Precision: 7-digit geohashes (approximately 150m x 150m)

Configuration Example:

{
  "distributionType": ["Broadcast"],
  "distributionSchedule": {
    "repeatPeriod": 60,
    "duration": 120,
    "startTime": "2024-06-15T12:00:00Z"
  }
}

Distribution Schedule Fields:

repeatPeriod (integer, required) - How often to send messages in seconds (5-3600)

Example: 30 = send message every 30 seconds

duration (integer, required) - How long to continue sending in minutes (1-32000)

32000 minutes ≈ 22 days = maximum duration
Example: 120 = continue broadcasting for 2 hours

startTime (string, optional) - ISO 8601 UTC timestamp when to start (must end with Z)

If omitted: broadcasting starts immediately
Example: "2024-06-15T07:00:00Z" = start at 7 AM UTC on June 15, 2024
Format: YYYY-MM-DDTHH:MM:SSZ (the Z suffix indicates UTC timezone)

When to Use Broadcast Distribution:

✅ Construction/work zones (everyone in area needs to know)
✅ Weather warnings (affects all road users in region)
✅ Road closures (area-wide impact)
✅ Persistent hazards (debris, flooding)
✅ Traffic advisories
✅ Physical RSU (pRSU) support

Important Notes:

Messages are broadcast to all 7-digit geohashes that intersect your geofence
System automatically includes 1 extra geohash buffer around geofence to avoid gaps
Subscribers receive messages based on their location/geohash subscription
Higher network overhead (messages sent repeatedly to regions)
Best for persistent, area-wide information

Hybrid Distribution (Targeted + Broadcast)

You can enable both distribution types simultaneously for comprehensive coverage:

{
  "distributionType": ["Targeted", "Broadcast"],
  "distributionSchedule": {
    "repeatPeriod": 30,
    "duration": 60
  }
}

How It Works:

Targeted component: Sends real-time personalized messages to road users who trigger geofence
Broadcast component: Sends scheduled messages to all Regional topics for geohash regions

When to Use Both:

✅ Maximum coverage (reach both position-reporting and non-reporting vehicles)
✅ Redundancy (ensure message delivery through multiple channels)
✅ Support diverse client implementations (some monitor Direct, others monitor Regional)
✅ Physical RSU + cloud-based processing
✅ Critical safety messages requiring guaranteed delivery

Example Scenario: School zone safety warning:

Targeted: Immediate alert when vehicle enters zone while speeding
Broadcast: Continuous advisory to all vehicles approaching the area

Choosing the Right Distribution Type

Scenario	Recommended Type	Reason
Speed violation in work zone	Targeted	Only speeding vehicles need warning
Construction zone advisory	Broadcast	All vehicles in area need information
Wrong-way driver alert	Targeted	Only specific vehicle is violating
Weather warning (icy roads)	Broadcast	Affects entire region
Pedestrian crossing detection	Targeted	Alert specific approaching vehicles
Road closure information	Broadcast	Area-wide impact
Red light violation	Targeted	Specific vehicle warning
School zone awareness	Broadcast	All vehicles in vicinity
Critical intersection hazard	Both	Maximum coverage

Validation Rules

Distribution Schedule Requirements:

For Targeted Distribution:

distributionSchedule is optional
If provided, only repeatPeriod is used (default: 5 seconds)
duration and startTime are ignored
Messages sent in real-time upon trigger

For Broadcast Distribution:

distributionSchedule is required
Must include both repeatPeriod and duration
startTime is optional (defaults to immediate start)
Messages sent on schedule to all geohash regions

For Hybrid (Targeted + Broadcast):

distributionSchedule is required (for Broadcast component)
Targeted component sends immediately, Broadcast follows schedule

Distribution Type Validation:

Cannot specify same type twice: ❌ ["Broadcast", "Broadcast"]
Both types allowed: ✅ ["Targeted", "Broadcast"]
If neither specified: defaults to ["Targeted"]

Message Type Considerations

TIM (Traveler Information Message) - Special Handling:

When using Broadcast distribution with TIM messages:

System auto-converts your geofence to SAE J2735 GeographicalPath format
GeographicalPath is added to each DataFrame if not already present
Heading limits are added to GeographicalPath/direction field if defined
Distribution schedule parameters are added to TIM message structure

RSA (Road Side Alert):

Works with both Targeted and Broadcast
Broadcast: Published to all geohashes affected by geofence
Use Public vendor ID for maximum reach

DENM (ETSI Messages):

Follows same distribution rules as SAE messages
Must use messageStandard: "etsi" in configuration

Generic Custom Messages:

Support both distribution types
Can use vendor-specific message formats and types

Best Practices

Configuration Design

Keep Geofences Reasonably Sized: System enforces maximum 288 geohashes at precision 7. Break large areas into multiple configurations. Consider MEC coverage boundaries.

Use Appropriate Geometry Types: Use LineString/MultiLineString for crossing detection (lane boundaries, stop lines). Use Polygon/MultiPolygon for area monitoring (work zones, school zones).

Choose the Right Trigger Conditions: Use "enter" for initial warnings (entering work zone), "inside" for persistent alerts (inside school zone), "leave" for exit notifications (leaving restricted area), and "crossing" for line violations (wrong-way driving, red light).

Optimize Message Count: Maximum 10 messages per configuration. Group related messages in single configuration. Use different trigger conditions to vary timing.

Performance Optimization

Distribution Type Selection: Use "Targeted" for real-time, personalized alerts. Use "Broadcast" for persistent area-wide information. Avoid unnecessary broadcast messages (higher overhead).

Speed and Heading Limits: Only add limits when necessary for filtering. Speed limits reduce false positives. Heading limits enable directional warnings.

Configuration Activation: Set isActive: false when testing. Activate only when ready for production. Use updates to modify without recreating.

Geometry Best Practices

Polygon Winding Order: Always use counter-clockwise winding. Tools like geojson.io generate correct winding. System validates and rejects clockwise polygons.

Coordinate Precision: Use 6-7 decimal places for accuracy. 6 decimal places ≈ 0.11 meter precision. Avoid excessive precision (no benefit beyond 7 places).

Ring Closure: First and last points must be identical. System validates closure automatically. Use array copy to ensure match: [point1, point2, point3, point1].

Message Design

Private vs Public Messages: isPrivate: true makes messages only visible to your vendor's devices. isPrivate: false makes messages visible to all ETX users. Consider privacy implications.

ITIS Code Selection: Use standard ITIS codes for interoperability. Reference SAE J2540 Volume Two. Test with common V2X receivers.

Distribution Schedule Tuning: Longer repeatPeriod reduces message overhead. Shorter repeatPeriod ensures timely delivery. Balance based on urgency and area size.

Common Use Cases

Use Case 1: School Zone Speed Warning

Alert drivers entering a school zone during school hours if they're speeding.

Distribution Strategy: Use Targeted for immediate alerts to speeding vehicles.

{
  "name": "Lincoln Elementary School Zone",
  "description": "Speed warning for school zone during school hours",
  "geoFence": {
    "type": "FeatureCollection",
    "features": [{
      "type": "Feature",
      "geometry": {
        "type": "Polygon",
        "coordinates": [[
          [-77.0366, 38.8977],
          [-77.0360, 38.8980],
          [-77.0360, 38.8970],
          [-77.0366, 38.8967],
          [-77.0366, 38.8977]
        ]]
      },
      "properties": {}
    }]
  },
  "messageStandard": "sae",
  "messages": [{
    "isPrivate": false,
    "roadUserType": ["Vehicle"],
    "triggerConditions": ["enter"],
    "limits": [{
      "speed": {
        "min": 0,
        "max": 11.18
      }
    }],
    "distributionType": ["Targeted"],
    "saeAlert": {
      "typeEvent": 8960,
      "description": [8961]
    }
  }],
  "isActive": true
}

Key Features:

Polygon geofence around school
"enter" trigger for initial warning
Speed limit: 11.18 m/s (≈25 mph)
Targeted distribution for real-time alerts
SAE RSA message with school zone ITIS codes

MQTT Subscription (Client Side):

# Vehicle subscribes to Direct topic to receive targeted alerts
vzimp/1/Direct/Vehicle/PassengerCar/YourVendorID|Public/j2735_gr/RSA/+

How It Works:

Vehicle enters school zone geofence
System checks vehicle speed: if > 11.18 m/s (25 mph), trigger alert
RSA message sent to vehicle's Direct topic: vzimp/1/Direct/Vehicle/PassengerCar/YourVendorID/j2735_gr/RSA/{sessionID}
Only the speeding vehicle receives the alert

Use Case 2: Construction Zone Advisory

Broadcast work zone information to all vehicles approaching an intersection.

{
  "name": "Main St & 5th Ave Construction",
  "description": "Active road work at intersection",
  "geoFence": {
    "type": "FeatureCollection",
    "features": [{
      "type": "Feature",
      "geometry": {
        "type": "Polygon",
        "coordinates": [[
          [-77.0400, 38.9000],
          [-77.0394, 38.9003],
          [-77.0394, 38.8997],
          [-77.0400, 38.8994],
          [-77.0400, 38.9000]
        ]]
      },
      "properties": {}
    }]
  },
  "messageStandard": "sae",
  "messages": [{
    "isPrivate": false,
    "roadUserType": ["Vehicle", "VulnerableRoadUser"],
    "triggerConditions": ["inside"],
    "distributionType": ["Broadcast"],
    "distributionSchedule": {
      "repeatPeriod": 30,
      "duration": 480,
      "startTime": "2024-06-15T07:00:00Z"
    },
    "saeInfo": {
      "dataFrames": [{
        "frameType": "workZone",
        "msgId": {
          "furtherInfoID": "2001"
        },
        "startTime": 100000,
        "durationTime": 480,
        "priority": 6,
        "content": {
          "workZone": [
            {"item": {"itis": 771}},
            {"item": {"text": "Lane Closed Ahead"}}
          ]
        }
      }]
    }
  }],
  "isActive": true
}

Key Features:

Broadcast every 30 seconds for 8 hours
Both vehicles and vulnerable road users
SAE TIM message with work zone content
High priority (6) for visibility

Distribution Strategy: Use Broadcast to inform all road users in the area.

MQTT Subscription (Client Side):

# Vehicle subscribes to Regional topics based on current location
# Assuming intersection is at geohash djzfu4kg (example)
vzimp/1/Regional/d/j/z/f/u/4/k/+/+/+/Public/j2735_gr/TIM/+

How It Works:

System calculates all 7-digit geohashes covered by intersection polygon
Every 30 seconds, TIM message is broadcast to Regional topics for each geohash:
- vzimp/1/Regional/d/j/z/f/u/4/k/g/Software/Application/Public/j2735_gr/TIM/{sessionID}
- vzimp/1/Regional/d/j/z/f/u/4/k/u/Software/Application/Public/j2735_gr/TIM/{sessionID}
- (and all other affected geohashes)
All vehicles subscribed to those Regional topics receive the work zone advisory
Messages continue for 8 hours (480 minutes) starting at 7 AM UTC

Use Case 3: Wrong-Way Driver Detection

Detect and alert vehicles traveling in the wrong direction on a one-way street.

{
  "name": "Oak Street Wrong-Way Detection",
  "description": "Alert for wrong-way drivers on one-way street",
  "geoFence": {
    "type": "FeatureCollection",
    "features": [{
      "type": "Feature",
      "geometry": {
        "type": "LineString",
        "coordinates": [
          [-77.0500, 38.9100],
          [-77.0494, 38.9103],
          [-77.0488, 38.9106]
        ]
      },
      "properties": {}
    }]
  },
  "messageStandard": "sae",
  "messages": [{
    "isPrivate": false,
    "roadUserType": ["Vehicle"],
    "triggerConditions": ["crossing"],
    "limits": [{
      "heading": {
        "min": 180,
        "max": 360
      }
    }],
    "distributionType": ["Targeted"],
    "saeAlert": {
      "typeEvent": 9729,
      "description": [9730]
    }
  }],
  "isActive": true
}

Key Features:

LineString geofence across street
"crossing" trigger for line violation
Heading filter: 180-360° (southbound/westbound = wrong way)
Immediate targeted alert to wrong-way driver
ITIS codes for wrong-way driving

Distribution Strategy: Use Targeted to alert only the violating vehicle.

MQTT Subscription (Client Side):

# Vehicle subscribes to Direct RSA messages
vzimp/1/Direct/Vehicle/+/Public/j2735_gr/RSA/+

How It Works:

Vehicle crosses LineString geofence
System checks vehicle heading: if 180-360° (wrong direction), trigger alert
RSA message sent immediately to vehicle's Direct topic
Wrong-way driver receives critical safety alert
Only the violating vehicle is alerted (not other drivers)

Use Case 4: Hybrid Distribution - Critical Intersection Hazard

Alert for a critical intersection with both real-time targeted warnings and area-wide broadcast.

Scenario: Ice storm has created hazardous conditions at a major intersection. Need to:

Alert vehicles as they approach (Targeted)
Provide persistent area-wide advisory (Broadcast)

{
  "name": "Critical Intersection Ice Hazard",
  "description": "Icy conditions at Main St & Highway 50 intersection",
  "geoFence": {
    "type": "FeatureCollection",
    "features": [{
      "type": "Feature",
      "geometry": {
        "type": "Polygon",
        "coordinates": [[
          [-77.0550, 38.9150],
          [-77.0544, 38.9153],
          [-77.0544, 38.9147],
          [-77.0550, 38.9144],
          [-77.0550, 38.9150]
        ]]
      },
      "properties": {}
    }]
  },
  "messageStandard": "sae",
  "messages": [{
    "isPrivate": false,
    "roadUserType": ["Vehicle", "VulnerableRoadUser"],
    "triggerConditions": ["enter"],
    "distributionType": ["Targeted", "Broadcast"],
    "distributionSchedule": {
      "repeatPeriod": 20,
      "duration": 360,
      "startTime": "2024-01-15T06:00:00Z"
    },
    "saeAlert": {
      "typeEvent": 1025,
      "description": [1026, 1027]
    }
  }],
  "isActive": true
}

Key Features:

Both Targeted and Broadcast distribution
Immediate alerts when entering zone (Targeted)
Persistent regional broadcasts every 20 seconds (Broadcast)
Duration: 6 hours (360 minutes)
Public message (isPrivate: false) for maximum reach

Distribution Strategy: Use Both for comprehensive coverage.

MQTT Subscriptions (Client Side):

For Targeted Messages:

# Subscribe to Direct RSA messages
vzimp/1/Direct/Vehicle/PassengerCar/Public/j2735_gr/RSA/+

For Broadcast Messages:

# Subscribe to Regional RSA messages (update geohash based on location)
vzimp/1/Regional/d/j/z/f/u/5/5/+/+/+/Public/j2735_gr/RSA/+
vzimp/1/Regional/d/j/z/f/u/5/h/+/+/+/Public/j2735_gr/RSA/+
vzimp/1/Regional/d/j/z/f/u/5/k/+/+/+/Public/j2735_gr/RSA/+

How It Works:

Targeted Component:

Vehicle enters intersection geofence
Immediate RSA sent to vehicle's Direct topic
Real-time, low-latency warning

Broadcast Component:

Every 20 seconds, RSA broadcast to all geohashes covering intersection
Messages sent to Regional topics: vzimp/1/Regional/{geohash}/Software/Application/Public/j2735_gr/RSA/{sessionID}
All vehicles in area receive advisory
Continues for 6 hours or until ice clears

Benefits:

Vehicles with active position reporting get immediate Targeted alerts
Vehicles without position reporting still receive Broadcast messages
Redundant delivery ensures critical safety message reaches all road users
Supports diverse client implementations (some monitor Direct, others Regional)

Use Case 5: Mid-block Pedestrian Crossing Warning

Alert vehicles when pedestrians are crossing at a designated crosswalk.

{
  "name": "Main St Crosswalk",
  "description": "Pedestrian crossing detection",
  "geoFence": {
    "type": "FeatureCollection",
    "features": [{
      "type": "Feature",
      "geometry": {
        "type": "LineString",
        "coordinates": [
          [-77.0600, 38.9200],
          [-77.0594, 38.9200]
        ]
      },
      "properties": {}
    }]
  },
  "messageStandard": "sae",
  "messages": [{
    "isPrivate": false,
    "roadUserType": ["VulnerableRoadUser"],
    "triggerConditions": ["crossing"],
    "distributionType": ["Targeted"],
    "saeAlert": {
      "typeEvent": 8961
    }
  }],
  "isActive": true
}

Key Features:

LineString at crosswalk location
"crossing" trigger detects pedestrians
Targeted to vulnerable road users
Can be combined with vehicle warning message

Use Case 6: OEM Client-Side Logic - Broadcast Zone Definition

OEM wants vehicles to process geofence logic onboard. Send zone definition via Broadcast so vehicles can generate warnings themselves.

Scenario: Support OEM requirement to handle geofencing onboard the vehicle, or support physical RSU deployment.

{
  "name": "Work Zone Definition for Client Logic",
  "description": "Broadcast work zone definition for onboard processing",
  "geoFence": {
    "type": "FeatureCollection",
    "features": [{
      "type": "Feature",
      "geometry": {
        "type": "Polygon",
        "coordinates": [[
          [-77.0800, 38.9400],
          [-77.0794, 38.9403],
          [-77.0794, 38.9397],
          [-77.0800, 38.9394],
          [-77.0800, 38.9400]
        ]]
      },
      "properties": {}
    }]
  },
  "messageStandard": "sae",
  "messages": [{
    "isPrivate": false,
    "roadUserType": ["Vehicle"],
    "triggerConditions": ["inside"],
    "distributionType": ["Broadcast"],
    "distributionSchedule": {
      "repeatPeriod": 60,
      "duration": 32000
    },
    "saeInfo": {
      "dataFrames": [{
        "frameType": "workZone",
        "msgId": {"furtherInfoID": "3001"},
        "startTime": 100000,
        "durationTime": 32000,
        "priority": 7,
        "content": {
          "workZone": [
            {"item": {"itis": 771}},
            {"item": {"text": "Active Work Zone"}}
          ]
        }
      }]
    }
  }],
  "isActive": true
}

Key Features:

TIM message with GeographicalPath (auto-populated from geofence)
Broadcast distribution for area-wide dissemination
Long duration (32000 minutes ≈ 22 days)
Regions field auto-populated with geofence converted to SAE J2735 format

Distribution Strategy: Use Broadcast to support client-side logic and pRSUs.

MQTT Subscription (Client Side):

# Vehicle subscribes to Regional TIM messages
vzimp/1/Regional/d/j/z/f/u/8/0/+/+/+/Public/j2735_gr/TIM/+

How It Works:

System converts geofence polygon to SAE J2735 GeographicalPath
TIM message broadcast every 60 seconds to Regional topics for affected geohashes
Vehicle receives TIM with zone definition in DataFrame.regions
Vehicle processes GeographicalPath onboard:
- Detects when vehicle is inside the work zone
- Generates warning using onboard HMI
- No server-side evaluation needed
Supports pRSUs: TIM can be forwarded through physical roadside units

Use Cases:

OEM requirement for onboard geofence processing
Physical RSU (pRSU) deployments
Vehicles without position reporting capability
Regulatory compliance requiring client-side logic

Use Case 7: Multi-Zone Parking Alert

Alert drivers entering any of several restricted parking zones.

{
  "name": "Downtown No Parking Zones",
  "description": "Multiple restricted parking areas",
  "geoFence": {
    "type": "FeatureCollection",
    "features": [{
      "type": "Feature",
      "geometry": {
        "type": "MultiPolygon",
        "coordinates": [
          [[[-77.0700, 38.9300], [-77.0694, 38.9303], [-77.0694, 38.9297], [-77.0700, 38.9294], [-77.0700, 38.9300]]],
          [[[-77.0720, 38.9320], [-77.0714, 38.9323], [-77.0714, 38.9317], [-77.0720, 38.9314], [-77.0720, 38.9320]]]
        ]
      },
      "properties": {}
    }]
  },
  "messageStandard": "sae",
  "messages": [{
    "isPrivate": false,
    "roadUserType": ["Vehicle"],
    "triggerConditions": ["enter"],
    "limits": [{
      "speed": {
        "min": 0,
        "max": 5.56
      }
    }],
    "distributionType": ["Targeted"],
    "generic": {
      "messageType": "ParkingRestriction",
      "messageFormat": "json",
      "payload": "eyJtZXNzYWdlIjogIk5vIFBhcmtpbmcgWm9uZSJ9"
    }
  }],
  "isActive": true
}

Key Features:

MultiPolygon for multiple zones
Speed limit filter: only slow-moving vehicles (< 5.56 m/s ≈ 12.5 mph)
Custom generic message for parking alert
Triggers on entering any zone

MQTT Integration

For complete details on MQTT integration, including client connection, topic subscriptions, message publishing, and troubleshooting, please refer to the comprehensive MQTT API User Documentation.

The MQTT API documentation covers:

Client registration and connection workflow
Topic structure and naming conventions
Subscription patterns for Direct, Regional, and RegionalStatic namespaces
Message publishing to GeoRelevance topics
Geohash calculation and dynamic subscription updates
QoS and retain settings
Message flow examples for Targeted and Broadcast distributions
Debugging tips and common MQTT issues
Best practices for robust MQTT client implementation

Ensure all coordinates are within a single MEC's geographic boundary
Check coordinate precision and validity
Verify coordinates are in correct order [longitude, latitude]
Contact support if MEC boundaries are unclear

Error: "AreaSizeError"

Cause: Geofence area exceeds maximum coverage limit (288 geohashes at precision 7).

Solution:

Reduce geofence size
Split into multiple smaller configurations
Remove unnecessary coordinate points
Simplify geometry

Error: "Invalid trigger condition for geometry type"

Cause: Using incompatible trigger condition with geometry type.

Solution:

LineString/MultiLineString: Use only "crossing"
Polygon/MultiPolygon: Use "enter", "leave", or "inside" (not "crossing")
Check geometry type in GeoJSON
Verify trigger conditions array

Error: "Polygon ring not closed"

Cause: First and last coordinate points are not identical.

Solution:

// Incorrect
"coordinates": [[[0, 0], [1, 0], [1, 1], [0, 1]]]

// Correct
"coordinates": [[[0, 0], [1, 0], [1, 1], [0, 1], [0, 0]]]

Error: "Polygon ring not counter-clockwise"

Cause: Polygon coordinates are in clockwise order instead of counter-clockwise.

Solution:

Use GeoJSON editing tools that enforce correct winding order
Manually reverse coordinate array order
Use geojson.io to visualize and correct

Error: "Configuration not found" (404)

Cause: Using incorrect configuration ID or configuration was deleted.

Solution:

Verify configuration ID is correct UUID
Use GET /api/v1/application/configurations/geofence/ids to list all IDs
Check that configuration wasn't deleted
Ensure using correct VendorID header

Error: "Forbidden" (403)

Cause: Authentication/authorization issue with tokens or VendorID.

Solution:

Verify Bearer token is valid and not expired
Verify SessionToken is valid and not expired
Check VendorID header matches your registered vendor
Ensure tokens have correct permissions
Regenerate tokens if needed

Error: "Too many requests" (429)

Cause: Rate limit exceeded for API calls.

Solution:

Implement exponential backoff retry logic
Reduce API call frequency
Batch operations when possible
Contact support if limits are too restrictive

Error: "Invalid configuration" (400)

Cause: Request body doesn't conform to schema or validation rules.

Solution:

Validate JSON syntax
Check all required fields are present
Verify data types match schema (strings, integers, booleans)
Review field constraints (min/max values, string lengths, patterns)
Use OpenAPI spec for reference

Additional Resources

Application Configuration API Reference - API documentation
Registration API Reference - Client registration and connection

Table of Contents Copy Anchor Link

OverviewCopy Anchor Link

Getting StartedCopy Anchor Link

AuthenticationCopy Anchor Link

API EndpointsCopy Anchor Link

Understanding Geofence ConfigurationsCopy Anchor Link

What is a Geofence Configuration?Copy Anchor Link

Configuration LifecycleCopy Anchor Link

Geofence GeometryCopy Anchor Link

Supported Geometry TypesCopy Anchor Link

Geometry RequirementsCopy Anchor Link

LineStringCopy Anchor Link

MultiLineStringCopy Anchor Link

PolygonCopy Anchor Link

MultiPolygonCopy Anchor Link

Area Size LimitsCopy Anchor Link

Trigger ConditionsCopy Anchor Link

Trigger TypesCopy Anchor Link

Visual Guide to Trigger ConditionsCopy Anchor Link

Polygon Triggers (enter, leave, inside)Copy Anchor Link

LineString Triggers (crossing)Copy Anchor Link

Multi-Geometry TriggersCopy Anchor Link

Geometry-Specific RulesCopy Anchor Link

Multiple Trigger ConditionsCopy Anchor Link

MessagesCopy Anchor Link

Message FieldsCopy Anchor Link

isPrivate (boolean, required)Copy Anchor Link

roadUserType (array, required)Copy Anchor Link

triggerConditions (array, required)Copy Anchor Link

limits (object, optional)Copy Anchor Link

distributionType (array, optional)Copy Anchor Link

distributionSchedule (object, optional)Copy Anchor Link

Message TypesCopy Anchor Link

Generic Custom MessagesCopy Anchor Link

Custom Message ExamplesCopy Anchor Link

Example 1: Simple JSON Custom MessageCopy Anchor Link

Example 2: TAM (TollAdvertisementMessage)Copy Anchor Link

Example 3: EVA (Emergency Vehicle Alert)Copy Anchor Link

Example 4: J2735_gr (GeoRouted) Custom MessageCopy Anchor Link

Custom Message Payload Encoding ReferenceCopy Anchor Link

SAE Road Side Alert (RSA)Copy Anchor Link

SAE Traveler Information Message (TIM)Copy Anchor Link

ETSI Decentralized Environmental Notification Message (DENM)Copy Anchor Link

Message StandardsCopy Anchor Link

Advanced Configuration OptionsCopy Anchor Link

Speed LimitsCopy Anchor Link

Heading/Direction LimitsCopy Anchor Link

Road User TypesCopy Anchor Link

Distribution TypesCopy Anchor Link

Targeted DistributionCopy Anchor Link

Broadcast DistributionCopy Anchor Link

Coverage/Broadcast Area CalculationCopy Anchor Link

Geohash Grid SystemCopy Anchor Link

Example: Geofence Coverage CalculationCopy Anchor Link

Coverage Area SizeCopy Anchor Link

Performance ConsiderationsCopy Anchor Link

Hybrid Distribution (Targeted + Broadcast)Copy Anchor Link

Choosing the Right Distribution TypeCopy Anchor Link

Validation RulesCopy Anchor Link

Message Type ConsiderationsCopy Anchor Link

Best PracticesCopy Anchor Link

Configuration DesignCopy Anchor Link

Performance OptimizationCopy Anchor Link

Geometry Best PracticesCopy Anchor Link

Message DesignCopy Anchor Link

Common Use CasesCopy Anchor Link

Use Case 1: School Zone Speed WarningCopy Anchor Link

Use Case 2: Construction Zone AdvisoryCopy Anchor Link

Use Case 3: Wrong-Way Driver DetectionCopy Anchor Link

Use Case 4: Hybrid Distribution - Critical Intersection HazardCopy Anchor Link

Use Case 5: Mid-block Pedestrian Crossing WarningCopy Anchor Link

Use Case 6: OEM Client-Side Logic - Broadcast Zone DefinitionCopy Anchor Link

Use Case 7: Multi-Zone Parking AlertCopy Anchor Link

MQTT IntegrationCopy Anchor Link

TroubleshootingCopy Anchor Link

Common Errors and SolutionsCopy Anchor Link

Error: "Invalid area location"Copy Anchor Link

Error: "AreaSizeError"Copy Anchor Link

Error: "Invalid trigger condition for geometry type"Copy Anchor Link

Table of Contents

Overview

Getting Started

Authentication

API Endpoints

Understanding Geofence Configurations

What is a Geofence Configuration?

Configuration Lifecycle

Geofence Geometry

Supported Geometry Types

Geometry Requirements

LineString

MultiLineString

Polygon

MultiPolygon

Area Size Limits

Trigger Conditions

Trigger Types

Visual Guide to Trigger Conditions

Polygon Triggers (enter, leave, inside)

LineString Triggers (crossing)

Multi-Geometry Triggers

Geometry-Specific Rules

Multiple Trigger Conditions

Messages

Message Fields

`isPrivate` (boolean, required)

`roadUserType` (array, required)

`triggerConditions` (array, required)

`limits` (object, optional)

`distributionType` (array, optional)

`distributionSchedule` (object, optional)

Message Types

Generic Custom Messages

Custom Message Examples

Example 1: Simple JSON Custom Message

Example 2: TAM (TollAdvertisementMessage)

Example 3: EVA (Emergency Vehicle Alert)

Example 4: J2735_gr (GeoRouted) Custom Message

Custom Message Payload Encoding Reference

SAE Road Side Alert (RSA)

SAE Traveler Information Message (TIM)

ETSI Decentralized Environmental Notification Message (DENM)

Message Standards

Advanced Configuration Options

Speed Limits

Heading/Direction Limits

Road User Types

Distribution Types

Targeted Distribution

Broadcast Distribution

Coverage/Broadcast Area Calculation

Geohash Grid System

Example: Geofence Coverage Calculation

Coverage Area Size

Performance Considerations

Hybrid Distribution (Targeted + Broadcast)

Choosing the Right Distribution Type

Validation Rules

Message Type Considerations

Best Practices

Configuration Design

Performance Optimization

Geometry Best Practices

Message Design

Common Use Cases

Use Case 1: School Zone Speed Warning

Use Case 2: Construction Zone Advisory

Use Case 3: Wrong-Way Driver Detection

Use Case 4: Hybrid Distribution - Critical Intersection Hazard

Use Case 5: Mid-block Pedestrian Crossing Warning

Use Case 6: OEM Client-Side Logic - Broadcast Zone Definition

Use Case 7: Multi-Zone Parking Alert

MQTT Integration

Troubleshooting

Common Errors and Solutions

Error: "Invalid area location"

Error: "AreaSizeError"

Error: "Invalid trigger condition for geometry type"

Error: "Polygon ring not closed"
